Foil Drive Assist SLIM - Performance Battery x 2

Foil Drive Assist SLIM V2 Motor - Performance Battery x 2 included

IN STOCK

The Foil Drive Assist Slim is the smaller, lighter, performance oriented model, for the ultimate in performance hybrid electric assist foiling. Despite its small size, it offers plenty of thrust to get you onto the foil easier and sooner however the smaller batteries do reduce the run time. The Assist Slim is perfect for advanced, high performance riders or wingers/downwinders that do not require lots of battery capacity.

The kit includes everything you need to turn your existing foil and board into an electric assisted foiling machine:

Universal Mast Adaptor that suits 99% of foil masts available

v2 Motor With 20cm cable length as standard.

Cable lengths are easily interchangeable for ultimate customisation with the new Removable V2 Motor Cable

Bluetooth Connectivity to the Foil Drive Mobile App

Simply choose your desired

Slim Performance Battery

Slim Endurance Battery (Requires at 28v charger additional purchase!)

Slim Travel Battery (Coming Nov24)

If your looking to pair your Assist Slim with an integrated mast, checkout these listings

Assist Slim x NoLimitz integrated Mast

Assist Slim x Axis Integrated Mast

The Foil Drive Assist Slim is perfectly suited to those just looking for an extra boost to get on foil or to ride smaller boards and foils. The Assist Slim is not suitable for prolongated periods of motor assisted riding, it simply provides the boost to get up on foil and ride more. Advanced Surf and Downwind riders will love the low profile and weight but will need to be very disciplined on the throttle usage. Wing foilers simple do not need the run time usually and will also appreciate the low profile and weight.

NB: Boards with Carbon Tracks may experience connectivity issues. See our External Antenna



Max Thrust: 25.5kg (56.2lbs)

*Weight Range: 2.3 - 2.8kg (5.0 - 6.1lbs)

Max Dimensions: L510 x W250 x H35mm

Min Dimensions: L415 x W250 x H35mm

The Foil Drive Slim Performance Battery is the smaller Slim battery with 166 Wh capacity.

The Performance Battery is great for those who're wanting a punchy, high performing, light-weight ride at the cost of runtime.

As with all Gen2 Foil Drive batteries, the Slim Endurance Battery is certified IP68 rated for increased protection and peace of mind against water and dust.

The single power plug contains larger connectors that provide power to the Foil Drive unit and smaller connectors for charging the battery. The included dust cap provides extra protection during storage & transport.

Only compatible with Foil Drive Assist Slim.

DO NOT use the 40v Fast Charger 8amp with the Slim Performance battery.

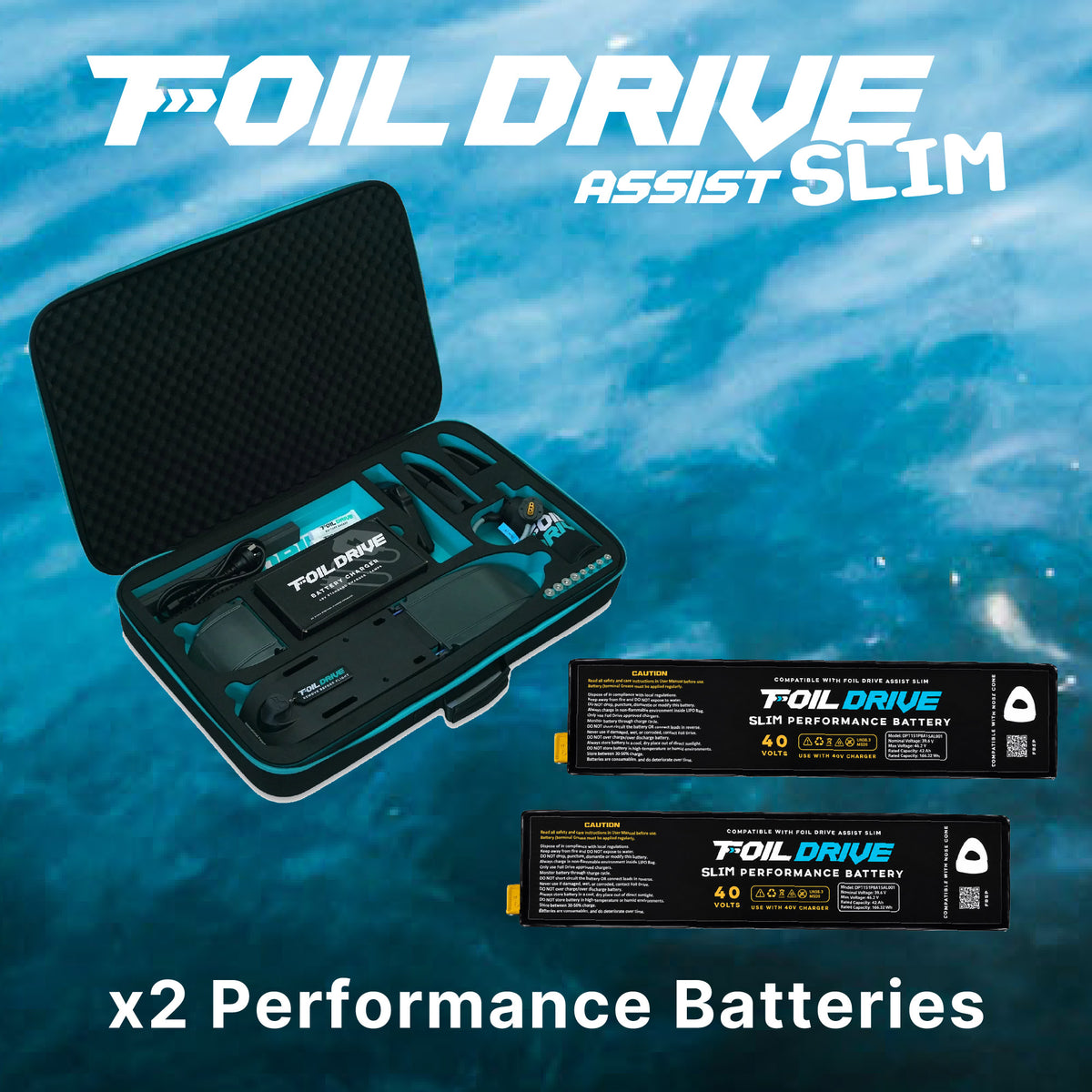

Foil Drive Assist SLIM -  Provided with the following

2 x supplied performance Slim Battery ( plus additionals if required )

V2 Motor with 20cm Cable as Standard

UNIVERSAL MAST ADAPTOR NOW INCLUDED!

Foil Drive Assist Slim Electronics Box

Motor Plug Protector with Keychain

Foil Drive Nose Cone C

Foil Drive Nose Cone D

Foil Drive Universal Motor Pod - Rear

Foil Drive Universal Motor Pod - Short Nose

Foil Drive Universal Motor Pod - Long Nose

Foil Drive v2 Wireless Throttle Controller

Foil Drive Controller Wrist Strap

Foil Drive Mast Cable Guide 23cm

Foil Drive Controller Wireless Charge Pad

Micro USB Cable

40v Standard Foil Drive Charger 4amp

Power Lead (AU, US or EU)

2x Mast Track Foam Inserts

2x Nose Cone Rocker Pad

2x Battery Grease

4x M8 Assist Slim Mast Plate Bolts 60mm

4x M6 Assist Slim Mast Plate Bolts 60mm

Foil Drive 2.5mm Driver

Pick Tool

Torx T40 Tee Handle Driver

Torx T30 Tee Handle Driver

Foil Drive Cleaning Cloth

Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag:

4x M8 Locking Tee Nuts

4x M6 Locking Tee Nuts

4x M34 x 20m Bolts for Locking Tee Nuts

Foil Drive Motor and Pod Bolts Bag:

4x Motor Pod Bolts (M3 x 12mm)

3x Puck Bolts (M3 x 12mm)

3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag:

2x O-Ring Seals - Foil Drive Assist Slim

2x Latch Assembly - Foil Drive Assist Slim

3x Motor Plug Bolts (M3 x 12mm)

4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)

4x Latch Locking Bolts (M3 x 16mm)

2x Propeller Bolts (M3 x 30mm)

2x Latch Pivot Bolts (M3 x 45mm)
