KT Apex UHM Carbon Mast

Ultra High Modulus Carbon.

Downwind Race, Prone, Wake, Tow, Wing, Wave, Freeride, Freestyle, Race, Big Wave

in stock

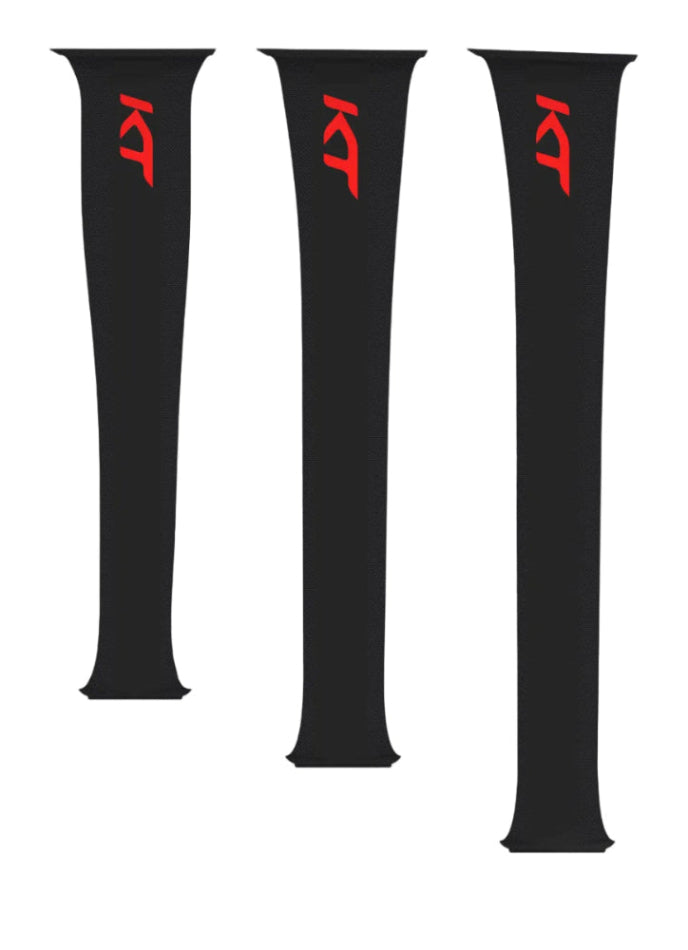

The Apex Race Mast Series sets a new standard for hydrodynamic efficiency, stiffness, and control. Each model
— 77 cm, 85 cm, and 95 cm — is a unique, discipline-specific design, built from the ground up for its intended use rather than scaled from a single template.
Every Apex mast incorporates ultra-high modulus carbon, delivering a massive leap in stiffness and responsiveness for a given thickness. The result: a mast that’s faster, more agile, and up to 30% lower drag than our standard designs.
The Apex Mast features a multi-airfoil design tuned for low submerged efficiency, high  ventilation resistance, and low surface-piercing spray drag. Its aggressive taper was created using video to study how different parts of the mast are utilized in different disciplines and conditions, a deep dive on flex pattern and its effect on control,
optimization of a large range of airfoils to cover every use case, and finally the application of this knowledge in a way that meets riders demands of each size.

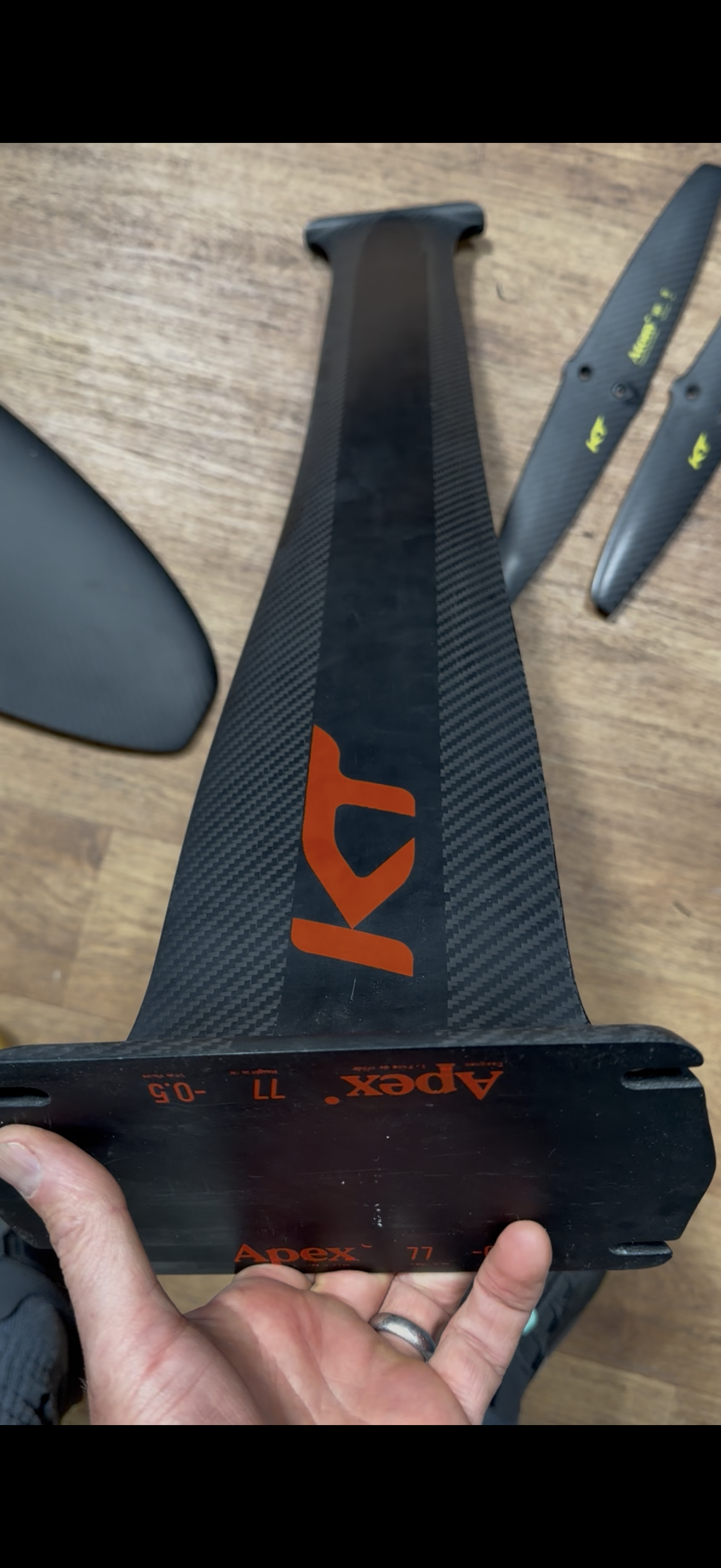

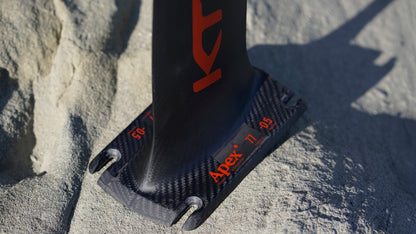

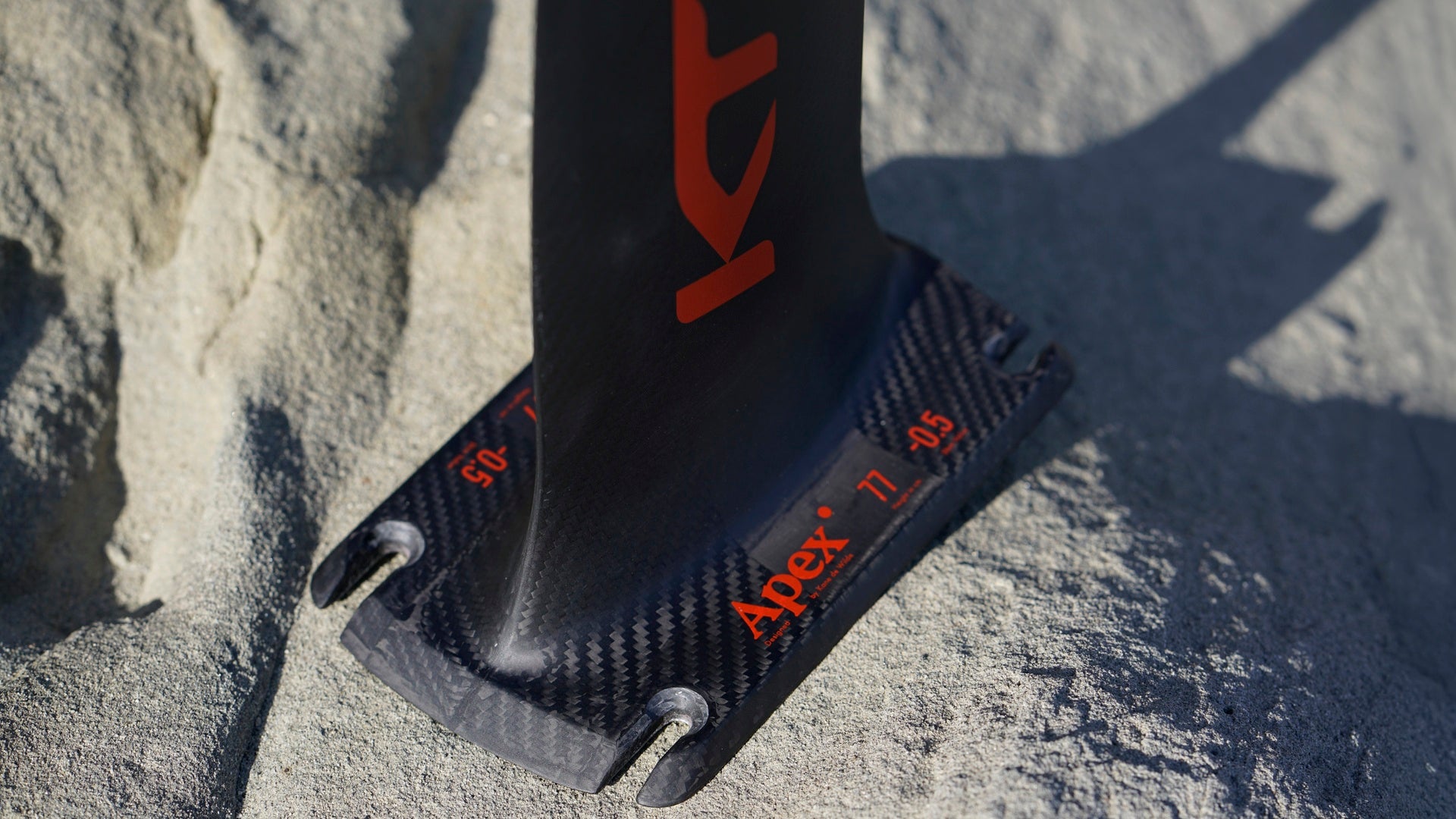

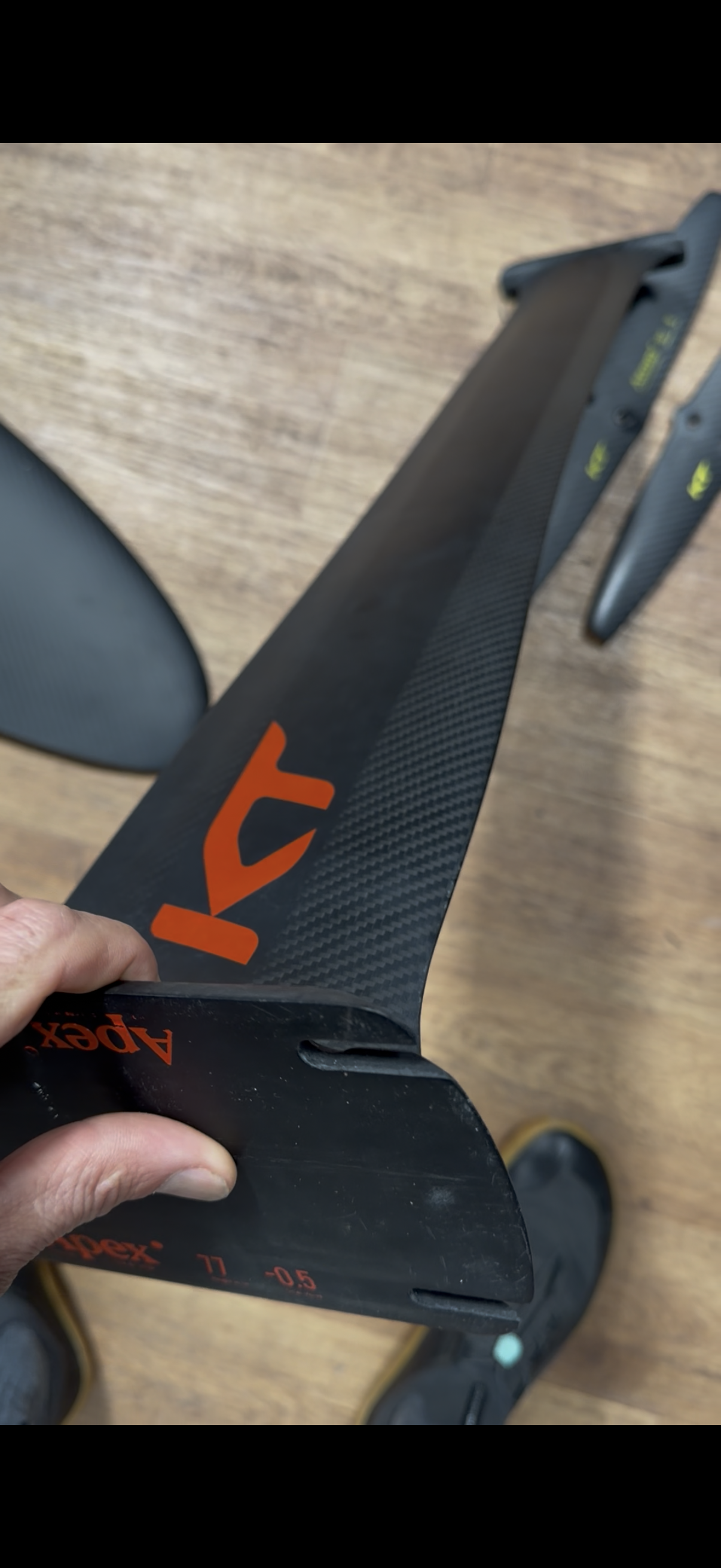

All Sizes of the Apex mast feature a forward-offset baseplate, minimizing swing weight and facilitating a more direct connection to the foil.

Discipline-Specific Design

Apex 77 – Optimized for straight line speed and glide downwind plus amazing manoeuvrability and
forgiveness prone foiling.

Apex 85 – Built for wing foiling, wave riding, and freeride control. A straighter midsection and unique top
airfoil reduce drag at aggressive lean angles and provide outstanding ventilation resistance and stability
through chop.

Apex 95 – The flagship race mast, engineered for maximum top-end speed, yaw stability, and ventilation resistance. It features a wider “sweet spot” than the 85, improving its control through larger chop at high lean angles.

Apex Mast
Ultra High Modulus Carbon + UD Carbon Strip



Meet the Apex, our ultra‑stiff mast engineered for maximum load, higher speeds, instant response, and a hyper‑connected ride. Every input becomes acceleration. Every carve becomes seamless flow. Its refined, reduced‑chord profile cuts cleanly through the water, minimising drag and unlocking more glide, more speed, and effortless efficiency. Each mast size is purpose‑designed and individually tuned for its specific discipline, moving far beyond the old “scale up or down” approach. The Apex isn’t an evolution; it’s the new standard, crafted with uncompromising precision and premium Ultra‑High Modulus Carbon.



Apex Sizes and Disciplines:

Apex 77cm - Downwind Race / Prone / Wake / Tow

Apex 85cm - Winging / Downwind / Tow / Prone / Wave riding / Freeride / Freestyle

Apex 95cm - Race / Big Wave / Tow / Winging
